冷压端子--T45°铜管端子

LY0001-4001/4040

⊙材质:紫铜
⊙含量:铜99.9%以上
⊙表面:镀锡
⊙用途:端子就是用于实现电气连接的一种配件产品,工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的,它其实就是一段封在绝缘塑料里面的金属片,两端都有孔可以插入导线,有螺丝用于紧固或者松开。比如两根导线,有时需要连接,有时又需要断开,这时就可以用端子把它们连接起来,并且可以随时断开,而不必把它们焊接起来或者缠绕在一起,很方便快捷。

冷压端子 PART NO
2015-2018

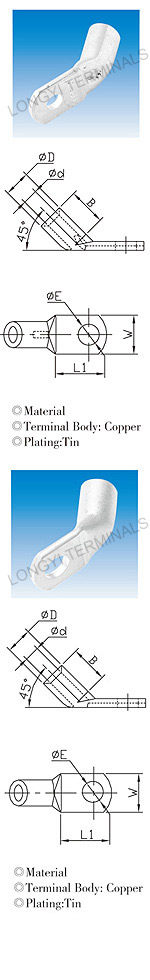

ITEM NODIMENSIONS
φEΦDΦdWBL1
LY0001-4001T45-10/66.46.94.711.910.012.5
LY0001-4002T45-10/88.36.94.713.510.015.5
LY0001-4003T45-16/66.47.85.611.911.012.0
LY0001-4004T45-16/88.37.85.613.511.015.5
LY0001-4005T45-25/88.39.57.114.013.016.0
LY0001-4006T45-25/1010.59.57.116.013.019.0
LY0001-4007T45-35/88.311.08.216.516.018.0
LY0001-4008T45-35/1010.511.08.216.516.022.0
LY0001-4009T45-50/1010.512.59.517.919.022.0
LY0001-4010T45-50/1213.012.59.517.919.022.0
LY0001-4011T45-70/1010.515.011.521.521.022.0
LY0001-4012T45-70/1213.015.011.521.521.022.0
LY0001-4013T45-95/1414.517.013.524.724.033.0
LY0001-4014T45-95/1616.517.013.524.724.033.0
LY0001-4015T45-120/1414.520.015.628.927.033.0
LY0001-4016T45-120/1616.520.015.628.927.033.0
LY0001-4017T45-150/1414.521.016.530.432.033.0
LY0001-4018T45-150/1616.521.016.530.432.033.0
LY0001-4019T45-185/1616.523.618.434.034.035.0
LY0001-4020T45-240/1616.526.421.238.538.035.0
PART NO
2015-2018
ITEM NODIMENSIONS
φEΦDΦdWBL1
LY0001-4021S-T45--10/66.46.84.711.910.013.0
LY0001-4022S-T45--10/88.36.84.715.010.016.0
LY0001-4023S-T45--16/66.47.85.611.911.013.0
LY0001-4024S-T45--16/88.37.85.615.011.015.5
LY0001-4025S-T45--25/88.39.47.115.013.016.0
LY0001-4026S-T45--25/1010.59.47.118.013.021.0
LY0001-4027S-T45--35/88.311.38.716.016.017.0
LY0001-4028S-T45--35/1010.511.38.719.016.021.0
LY0001-4029S-T45--50/1010.512.69.820.019.021.0
LY0001-4030S-T45--50/1213.012.69.821.019.025.0
LY0001-4031S-T45--70/1010.514.711.521.521.021.0
LY0001-4032S-T45--70/1213.014.711.521.521.023.0
LY0001-4033S-T45--95/1414.516.913.524.724.028.0
LY0001-4034S-T45--95/1616.516.913.527.024.031.0
LY0001-4035S-T45--120/1414.519.915.626.526.530.0
LY0001-4036S-T45--120/1616.519.915.628.926.533.0
LY0001-4037S-T45--150/1414.520.916.530.432.034.0
LY0001-4038S-T45--150/1616.520.916.530.432.034.0
LY0001-4039S-T45--185/1616.523.718.834.034.035.0
LY0001-4040S-T45--240/1616.526.221.238.438.035.0

利用现有轨道式接线端子 RTB 连接技术,并加装了电子元器件组成的电路,实现了光电过程的传输耦合。 自动控制的核心是控制单元必须与各传感器和执行器可靠地隔离开,以免干扰,端子能够很好地完成这一功能,并保证现场信号与电子控制装置所要求的低电压相匹配,还可以作过程控制的外围设备与控制,信号和调节器装置之间的接口元件,且适用于不同的电压和功率范围。  光隔端子具有控制端信号损耗下、切换频率高、无机械触点抖动、无磨损切换、绝缘电压高、不怕振动、不受位置影响且寿命长等优点,因此在自动控制领域得到广泛应用。
