⊙材质：紫铜
⊙含量：铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
| PART NO 2015-2018 |

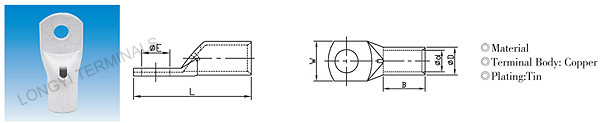

ITEM NO | DIMENSIONS | |||||
| φE | ΦD | Φd | W | B | L | ||
| LY0010-0001 | LYF10-5 | 5.3 | 8.0 | 5.0 | 11.5 | 9.0 | 28.0 |
| LY0010-0002 | LYF10-6 | 6.5 | 8.0 | 5.0 | 11.5 | 9.0 | 28.0 |
| LY0010-0003 | LYF10-8 | 8.4 | 8.0 | 5.0 | 13.5 | 9.0 | 32.0 |
| LY0010-0004 | LYF10-10 | 10.5 | 8.0 | 5.0 | 16.0 | 9.0 | 34.0 |
| LY0010-0005 | LYF16-6 | 6.5 | 9.0 | 6.0 | 13.0 | 10.0 | 33.0 |
| LY0010-0006 | LYF16-8 | 8.4 | 9.0 | 6.0 | 13.0 | 10.0 | 33.0 |
| LY0010-0007 | LYF16-10 | 10.5 | 9.0 | 6.0 | 16.0 | 10.0 | 38.0 |
| LY0010-0008 | LYF16-12 | 13.0 | 9.0 | 6.0 | 22.0 | 10.0 | 47.0 |
| LY0010-0009 | LYF25-6 | 6.5 | 11.0 | 8.0 | 16.0 | 11.0 | 37.0 |
| LY0010-0010 | LYF25-8 | 8.4 | 11.0 | 8.0 | 16.0 | 11.0 | 38.0 |
| LY0010-0011 | LYF25-10 | 10.5 | 11.0 | 8.0 | 17.0 | 11.0 | 42.0 |
| LY0010-0012 | LYF25-12 | 13.0 | 11.0 | 8.0 | 22.0 | 11.0 | 47.0 |
| LY0010-0013 | LYF35-6 | 6.5 | 13.0 | 9.0 | 18.0 | 14.0 | 44.0 |
| LY0010-0014 | LYF35-8 | 8.4 | 13.0 | 9.0 | 18.0 | 14.0 | 44.0 |
| LY0010-0015 | LYF35-10 | 10.5 | 13.0 | 9.0 | 18.0 | 14.0 | 44.0 |
| LY0010-0016 | LYF35-12 | 13.0 | 13.0 | 9.0 | 22.0 | 14.0 | 52.0 |
| LY0010-0017 | LYF50-6 | 6.5 | 14.5 | 11.0 | 21.0 | 17.0 | 50.0 |
| LY0010-0018 | LYF50-8 | 8.4 | 14.5 | 11.0 | 21.0 | 17.0 | 50.0 |
| LY0010-0019 | LYF50-10 | 10.5 | 14.5 | 11.0 | 21.0 | 17.0 | 50.0 |
| LY0010-0020 | LYF50-12 | 13.0 | 14.5 | 11.0 | 21.0 | 17.0 | 53.0 |
| LY0010-0021 | LYF70-6 | 6.5 | 17.0 | 13.0 | 25.0 | 20.0 | 55.0 |
| LY0010-0022 | LYF70-8 | 8.4 | 17.0 | 13.0 | 25.0 | 20.0 | 55.0 |
| LY0010-0023 | LYF70-10 | 10.5 | 17.0 | 13.0 | 25.0 | 20.0 | 55.0 |
| LY0010-0024 | LYF70-12 | 13.0 | 17.0 | 13.0 | 25.0 | 20.0 | 58.0 |
| LY0010-0025 | LYF70-16 | 17.0 | 17.0 | 13.0 | 28.0 | 20.0 | 64.0 |
| LY0010-0026 | LYF95-8 | 8.4 | 20.0 | 15.0 | 29.0 | 23.0 | 69.0 |
| LY0010-0027 | LYF95-10 | 10.5 | 20.0 | 15.0 | 29.0 | 23.0 | 69.0 |
| LY0010-0028 | LYF95-12 | 13.0 | 20.0 | 15.0 | 29.0 | 23.0 | 69.0 |
| LY0010-0029 | LYF95-16 | 17.0 | 20.0 | 15.0 | 29.0 | 23.0 | 69.0 |
| LY0010-0030 | LYF120-10 | 10.5 | 22.0 | 17.0 | 32.0 | 25.0 | 73.0 |
| LY0010-0031 | LYF120-12 | 13.0 | 22.0 | 17.0 | 32.0 | 25.0 | 73.0 |
| LY0010-0032 | LYF120-16 | 17.0 | 22.0 | 17.0 | 32.0 | 25.0 | 73.0 |
| LY0010-0033 | LYF150-10 | 10.5 | 25.0 | 19.0 | 36.0 | 30.0 | 80.0 |
| LY0010-0034 | LYF150-12 | 13.0 | 25.0 | 19.0 | 36.0 | 30.0 | 80.0 |
| LY0010-0035 | LYF150-16 | 17.0 | 25.0 | 19.0 | 36.0 | 30.0 | 80.0 |
| LY0010-0036 | LYF150-20 | 21.0 | 25.0 | 19.0 | 36.0 | 30.0 | 87.0 |
| LY0010-0037 | LYF185-10 | 10.5 | 27.0 | 21.0 | 39.0 | 35.0 | 86.0 |
| LY0010-0038 | LYF185-12 | 13.0 | 27.0 | 21.0 | 39.0 | 35.0 | 86.0 |
| LY0010-0039 | LYF185-16 | 17.0 | 27.0 | 21.0 | 39.0 | 35.0 | 86.0 |
| LY0010-0040 | LYF185-20 | 21.0 | 27.0 | 21.0 | 39.0 | 35.0 | 93.0 |
| LY0010-0041 | LYF240-10 | 10.5 | 30.0 | 24.0 | 44.0 | 35.0 | 95.0 |
| LY0010-0042 | LYF240-12 | 13.0 | 30.0 | 24.0 | 44.0 | 35.0 | 95.0 |
| LY0010-0043 | LYF240-16 | 17.0 | 30.0 | 24.0 | 44.0 | 35.0 | 95.0 |
| LY0010-0044 | LYF240-20 | 21.0 | 30.0 | 24.0 | 44.0 | 35.0 | 95.0 |
| LY0010-0045 | LYF300-10 | 10.5 | 32.0 | 26.0 | 47.0 | 42.0 | 114.0 |
| LY0010-0046 | LYF300-12 | 13.0 | 32.0 | 26.0 | 47.0 | 42.0 | 114.0 |
| LY0010-0047 | LYF300-16 | 17.0 | 32.0 | 26.0 | 47.0 | 42.0 | 114.0 |
| LY0010-0048 | LYF300-20 | 21.0 | 32.0 | 26.0 | 47.0 | 42.0 | 114.0 |
| LY0010-0049 | LYF300-24 | 26.0 | 32.0 | 26.0 | 47.0 | 42.0 | 114.0 |
| LY0010-0050 | LYF400-12 | 13.0 | 36.0 | 30.0 | 54.0 | 48.0 | 126.0 |
| LY0010-0051 | LYF400-16 | 17.0 | 36.0 | 30.0 | 54.0 | 48.0 | 126.0 |
| LY0010-0052 | LYF400-20 | 21.0 | 36.0 | 30.0 | 54.0 | 48.0 | 126.0 |
| LY0010-0053 | LYF400-24 | 26.0 | 36.0 | 30.0 | 54.0 | 48.0 | 126.0 |
| LY0010-0054 | LYF500-20 | 21.0 | 42.0 | 33.0 | 61.0 | 47.0 | 134.0 |
| LY0010-0055 | LYF500-24 | 26.0 | 42.0 | 33.0 | 61.0 | 47.0 | 134.0 |
| LY0010-0056 | LYF630-BL | 53.0 | 39.0 | 75.0 | 68.0 | 180.0 | |
| LY0010-0057 | LYF630-20 | 21.0 | 53.0 | 39.0 | 75.0 | 68.0 | 180.0 |
| LY0010-0058 | LYF630-24 | 26.0 | 53.0 | 39.0 | 75.0 | 68.0 | 180.0 |
利用现有轨道式接线端子 RTB 连接技术，并加装了电子元器件组成的电路，实现了光电过程的传输耦合。 自动控制的核心是控制单元必须与各传感器和执行器可靠地隔离开，以免干扰，端子能够很好地完成这一功能，并保证现场信号与电子控制装置所要求的低电压相匹配，还可以作过程控制的外围设备与控制，信号和调节器装置之间的接口元件，且适用于不同的电压和功率范围。 光隔端子具有控制端信号损耗下、切换频率高、无机械触点抖动、无磨损切换、绝缘电压高、不怕振动、不受位置影响且寿命长等优点，因此在自动控制领域得到广泛应用。
冷压端子--LYF 铜管端子 LY0010-0001/0058
