⊙材质：紫铜
⊙含量：铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
| PART NO 2015-2018 |
ITEM NO | DIMENSIONS | |||||
| φE | ΦD | Φd | W | B | L | ||
| LY0003-1001 | GC10-4 | 4.3 | 6.6 | 4.5 | 11.0 | 13.0 | 30.0 |
| LY0003-1002 | GC10-5 | 5.3 | 6.6 | 4.5 | 11.0 | 13.0 | 30.0 |
| LY0003-1003 | GC10-6 | 6.5 | 6.6 | 4.5 | 11.0 | 13.0 | 30.0 |
| LY0003-1004 | GC10-8 | 8.3 | 6.6 | 4.5 | 12.5 | 13.0 | 30.0 |
| LY0003-1005 | GC10-10 | 10.3 | 6.9 | 4.5 | 16.0 | 13.0 | 34.1 |
| LY0003-1006 | GC10-12 | 12.7 | 6.9 | 4.5 | 18.0 | 12.0 | 34.1 |
| LY0003-1007 | GC16-5 | 5.3 | 7.5 | 5.5 | 11.0 | 14.0 | 30.7 |
| LY0003-1008 | GC16-6 | 6.5 | 7.5 | 5.5 | 11.0 | 14.0 | 30.7 |
| LY0003-1009 | GC16-8 | 8.3 | 7.5 | 5.5 | 12.5 | 13.0 | 30.7 |
| LY0003-1010 | GC16-10 | 10.3 | 7.5 | 5.5 | 16.0 | 14.0 | 35.9 |
| LY0003-1011 | GC16-12 | 12.7 | 8.1 | 5.5 | 18.0 | 13.0 | 35.9 |
| LY0003-1012 | GC25-5 | 5.3 | 9.1 | 6.7 | 13.0 | 13.0 | 32.2 |
| LY0003-1013 | GC25-6 | 6.5 | 9.1 | 6.7 | 13.0 | 13.0 | 32.2 |
| LY0003-1014 | GC25-8 | 8.3 | 9.1 | 6.7 | 13.0 | 13.0 | 32.2 |
| LY0003-1015 | GC25-10 | 10.3 | 9.1 | 6.7 | 16.0 | 14.0 | 36.9 |
| LY0003-1016 | GC25-12 | 12.7 | 9.1 | 6.7 | 18.0 | 13.0 | 36.9 |
| LY0003-1017 | GC25-14 | 14.8 | 9.1 | 6.7 | 20.0 | 13.0 | 38.9 |
| LY0003-1018 | GC35-5 | 5.3 | 11.0 | 8.6 | 16.0 | 16.0 | 37.6 |
| LY0003-1019 | GC35-6 | 6.5 | 11.0 | 8.6 | 16.0 | 16.0 | 37.6 |
| LY0003-1020 | GC35-8 | 8.3 | 11.0 | 8.6 | 16.0 | 16.0 | 37.6 |
| LY0003-1021 | GC35-10 | 10.3 | 11.0 | 8.6 | 17.0 | 16.0 | 41.5 |
| LY0003-1022 | GC35-12 | 12.7 | 11.0 | 8.6 | 18.0 | 16.0 | 41.5 |
| LY0003-1023 | GC35-14 | 14.8 | 11.0 | 8.6 | 20.0 | 16.0 | 43.5 |
| LY0003-1024 | GC35-16 | 16.5 | 11.0 | 8.6 | 23.0 | 16.0 | 45.5 |
| LY0003-1025 | GC50-5 | 5.3 | 12.4 | 9.5 | 18.0 | 17.0 | 41.0 |
| LY0003-1026 | GC50-6 | 6.5 | 12.4 | 9.5 | 18.0 | 17.0 | 41.0 |
| LY0003-1027 | GC50-8 | 8.3 | 12.4 | 9.5 | 18.0 | 17.0 | 41.0 |
| LY0003-1028 | GC50-10 | 10.3 | 12.4 | 9.5 | 18.0 | 17.0 | 44.0 |
| LY0003-1029 | GC50-12 | 12.7 | 12.4 | 9.5 | 19.0 | 17.0 | 44.0 |
| LY0003-1030 | GC50-14 | 14.8 | 12.4 | 9.5 | 21.0 | 19.0 | 52.8 |
| LY0003-1031 | GC50-16 | 16.5 | 12.4 | 9.5 | 23.0 | 19.0 | 52.8 |
| LY0003-1032 | GC70-5 | 5.3 | 15.0 | 12.0 | 22.5 | 21.5 | 52.4 |
| LY0003-1033 | GC70-6 | 6.3 | 15.0 | 12.0 | 22.5 | 21.5 | 52.4 |
| LY0003-1034 | GC70-8 | 8.3 | 15.0 | 12.0 | 22.5 | 21.5 | 52.4 |
| LY0003-1035 | GC70-10 | 10.3 | 15.0 | 12.0 | 22.5 | 21.5 | 52.4 |
| LY0003-1036 | GC70-12 | 12.7 | 15.0 | 12.0 | 22.0 | 21.5 | 52.4 |
| LY0003-1037 | GC70-14 | 14.8 | 15.0 | 12.0 | 22.0 | 21.5 | 55.0 |
| LY0003-1038 | GC70-16 | 16.5 | 15.0 | 12.0 | 24.0 | 20.0 | 55.0 |
| LY0003-1039 | GC95-8 | 8.3 | 17.0 | 13.4 | 25.0 | 22.5 | 54.7 |
| LY0003-1040 | GC95-10 | 10.3 | 17.0 | 13.4 | 25.0 | 22.5 | 54.7 |
| LY0003-1041 | GC95-12 | 12.7 | 17.0 | 13.4 | 25.0 | 22.5 | 54.7 |
| LY0003-1042 | GC95-14 | 14.8 | 17.0 | 13.4 | 25.0 | 22.5 | 58.3 |
| LY0003-1043 | GC95-16 | 16.8 | 17.0 | 13.4 | 25.0 | 22.5 | 58.3 |
| LY0003-1044 | GC120-8 | 8.3 | 19.0 | 15.0 | 27.5 | 23.0 | 60.0 |
| LY0003-1045 | GC120-10 | 10.3 | 19.0 | 15.0 | 27.5 | 23.0 | 60.0 |
| LY0003-1046 | GC120-12 | 12.7 | 19.0 | 15.0 | 27.5 | 23.0 | 60.0 |
| LY0003-1047 | GC120-14 | 14.8 | 19.0 | 15.0 | 27.5 | 23.0 | 64.0 |
| LY0003-1048 | GC120-16 | 16.5 | 19.0 | 15.0 | 27.5 | 23.0 | 64.0 |
| LY0003-1049 | GC150-10 | 10.3 | 21.2 | 16.5 | 30.0 | 27.0 | 67.0 |
| LY0003-1050 | GC150-12 | 12.7 | 21.2 | 16.5 | 30.0 | 27.0 | 67.0 |
| LY0003-1051 | GC150-14 | 14.8 | 21.2 | 16.5 | 30.0 | 27.0 | 67.0 |
| LY0003-1052 | GC150-16 | 16.5 | 21.2 | 16.5 | 30.0 | 27.0 | 71.4 |
| LY0003-1053 | GC150-20 | 20.9 | 21.2 | 16.5 | 30.0 | 27.0 | 71.4 |
| LY0003-1054 | GC185-10 | 10.3 | 23.0 | 19.0 | 34.0 | 30.0 | 73.0 |
| LY0003-1055 | GC185-12 | 12.7 | 23.0 | 19.0 | 34.0 | 30.0 | 73.0 |
| LY0003-1056 | GC185-14 | 14.8 | 23.0 | 19.0 | 34.0 | 30.0 | 73.0 |
| LY0003-1057 | GC185-16 | 16.5 | 23.0 | 19.0 | 34.0 | 30.0 | 76.2 |
| LY0003-1058 | GC185-20 | 20.9 | 23.0 | 19.0 | 34.0 | 30.0 | 76.2 |
| LY0003-1059 | GC240-10 | 10.3 | 26.5 | 21.0 | 38.6 | 38.0 | 91.4 |
| LY0003-1060 | GC240-12 | 12.7 | 26.5 | 21.0 | 38.6 | 38.0 | 91.4 |
| LY0003-1061 | GC240-14 | 14.8 | 26.5 | 21.0 | 38.6 | 38.0 | 91.4 |
| LY0003-1062 | GC240-16 | 16.5 | 26.5 | 21.0 | 38.6 | 38.0 | 91.4 |
| LY0003-1063 | GC240-20 | 20.9 | 26.5 | 21.0 | 38.6 | 38.0 | 91.4 |
| LY0003-1064 | GC300-12 | 12.7 | 30.0 | 24.5 | 43.8 | 42.0 | 98.0 |
| LY0003-1065 | GC300-14 | 14.8 | 30.0 | 24.5 | 43.8 | 42.0 | 98.0 |
| LY0003-1066 | GC300-16 | 16.5 | 30.0 | 24.5 | 43.8 | 42.0 | 98.0 |
| LY0003-1067 | GC300-20 | 20.9 | 30.0 | 24.5 | 43.8 | 42.0 | 98.0 |
| LY0003-1068 | GC400-12 | 12.7 | 35.0 | 27.0 | 49.0 | 44.0 | 104.0 |
| LY0003-1069 | GC400-14 | 14.8 | 35.0 | 27.0 | 49.0 | 44.0 | 104.0 |
| LY0003-1070 | GC400-16 | 16.5 | 35.0 | 27.0 | 49.0 | 44.0 | 104.0 |
| LY0003-1071 | GC400-20 | 20.9 | 35.0 | 27.0 | 49.0 | 44.0 | 104.0 |
利用现有轨道式接线端子 RTB 连接技术，并加装了电子元器件组成的电路，实现了光电过程的传输耦合。 自动控制的核心是控制单元必须与各传感器和执行器可靠地隔离开，以免干扰，端子能够很好地完成这一功能，并保证现场信号与电子控制装置所要求的低电压相匹配，还可以作过程控制的外围设备与控制，信号和调节器装置之间的接口元件，且适用于不同的电压和功率范围。 光隔端子具有控制端信号损耗下、切换频率高、无机械触点抖动、无磨损切换、绝缘电压高、不怕振动、不受位置影响且寿命长等优点，因此在自动控制领域得到广泛应用。

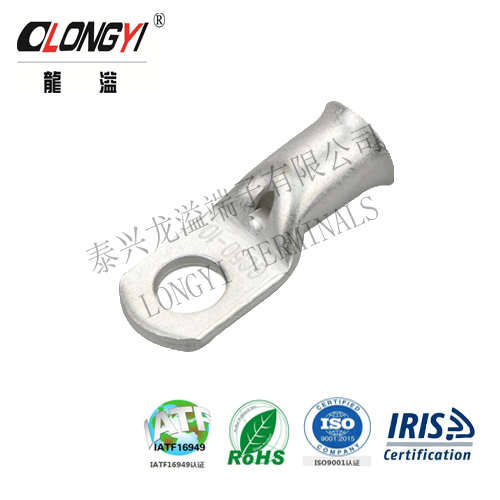

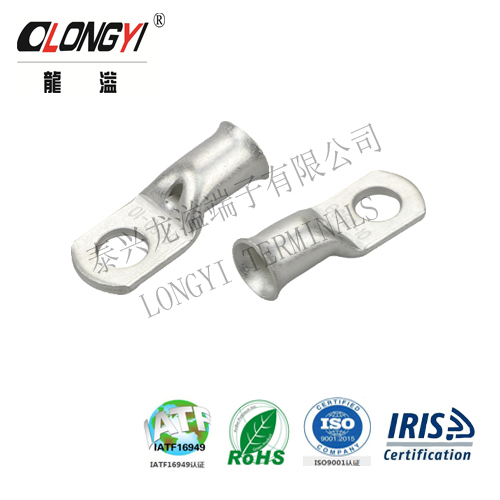

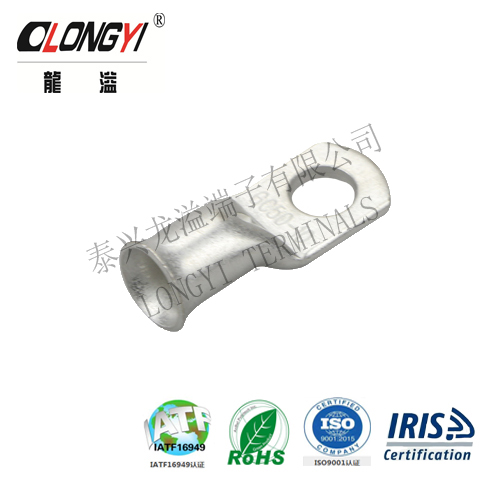

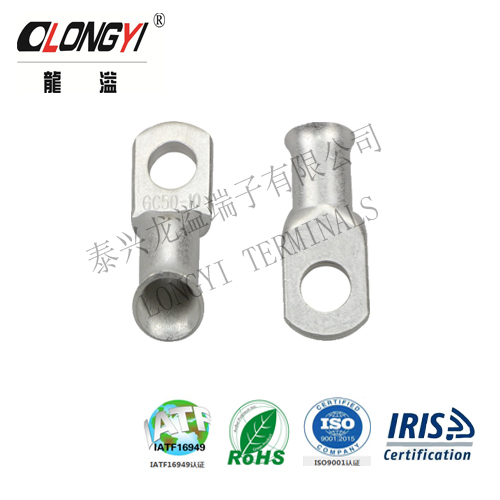

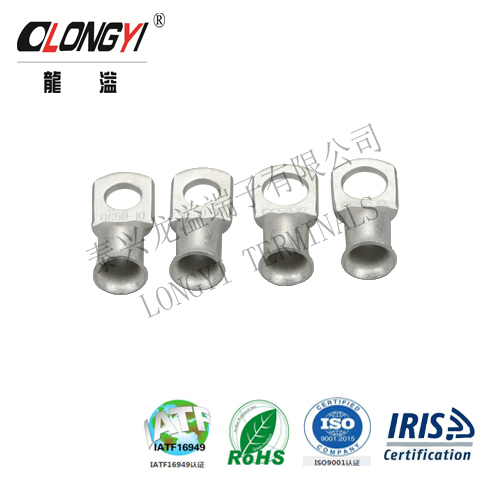

电缆线端头--GC（喇叭口型）铜管端子 LY0003-1001/1071
