⊙材质：紫铜
⊙含量：铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
 |
PART NO 2015-2018 |
ITEM NO | WIRE RANGE | DIMENSIONS | |||||||
| AWG/MCM | mm2 | ΦE | ΦD | Φd | W | B | L | T | |||
| LY0020-0001 | 1.25-3 | 22-16 | 0.25-1.65 | 3.7 | 3.4 | 1.7 | 5.5 | 4.5 | 11.5 | 0.8 | |
| LY0020-0002 | 1.25-3A | 3.2 | 3.4 | 1.7 | 5.5 | 4.5 | 11.5 | ||||
| LY0020-0003 | 1.25-3M | 3.7 | 3.4 | 1.7 | 6.6 | 4.5 | 14.4 | ||||
| LY0020-0004 | 1.25-4 | 4.3 | 3.4 | 1.7 | 8.0 | 4.5 | 15.8 | ||||
| LY0020-0005 | 1.25-4M | 4.3 | 3.4 | 1.7 | 6.6 | 4.5 | 14.4 | ||||
| LY0020-0006 | 1.25-5 | 5.3 | 3.4 | 1.7 | 8.0 | 4.5 | 15.8 | ||||
| LY0020-0007 | 1.25-6 | 6.4 | 3.4 | 1.7 | 11.6 | 4.5 | 21.7 | ||||
| LY0020-0008 | 1.25-8 | 8.4 | 3.4 | 1.7 | 11.6 | 4.5 | 21.7 | ||||
| LY0020-0009 | 1.25-10 | 10.5 | 3.4 | 1.7 | 13.6 | 4.5 | 26.0 | ||||
| LY0020-0010 | 2-3A | 16-14 | 1.04-2.63 | 3.2 | 4.0 | 2.3 | 8.5 | 4.8 | 16.8 | 0.8 | |
| LY0020-0011 | 2-3 | 3.7 | 4.0 | 2.3 | 8.5 | 4.8 | 16.8 | ||||
| LY0020-0012 | 2-3M | 3.7 | 4.0 | 2.3 | 6.6 | 4.8 | 14.4 | ||||
| LY0020-0013 | 2-4 | 4.3 | 4.0 | 2.3 | 8.5 | 4.8 | 16.8 | ||||
| LY0020-0014 | 2-4M | 4.3 | 4.0 | 2.3 | 6.6 | 4.8 | 14.4 | ||||
| LY0020-0015 | 2-5 | 5.3 | 4.0 | 2.3 | 9.5 | 4.8 | 16.8 | ||||
| LY0020-0016 | 2-6 | 6.4 | 4.0 | 2.3 | 12.0 | 4.8 | 21.8 | ||||
| LY0020-0017 | 2-7 | 7.1 | 4.0 | 2.3 | 12.0 | 4.8 | 21.8 | ||||
| LY0020-0018 | 2-8 | 8.4 | 4.0 | 2.3 | 12.0 | 4.8 | 21.8 | ||||
| LY0020-0019 | 2-10 | 10.5 | 4.0 | 2.3 | 13.6 | 4.8 | 25.5 | ||||
| LY0020-0020 | 3.5-4 | 12-10 | 2.63-4.60 | 4.3 | 5.0 | 3.2 | 9.5 | 6.8 | 20.0 | 0.8 | |
| LY0020-0021 | 3.5-5 | 5.3 | 5.0 | 3.2 | 9.5 | 6.8 | 20.0 | ||||
| LY0020-0022 | 3.5-6 | 6.4 | 5.0 | 3.2 | 12.0 | 6.8 | 21.4 | ||||
| LY0020-0023 | 3.5-8 | 8.4 | 5.0 | 3.2 | 12.0 | 6.8 | 21.4 | ||||
| LY0020-0024 | 5.5-3 | 8 | 4.60-6.64 | 3.7 | 5.6 | 3.5 | 9.5 | 6.8 | 19.8 | 1.0 | |
| LY0020-0025 | 5.5-4 | 4.3 | 5.6 | 3.5 | 9.5 | 6.8 | 19.8 | ||||
| LY0020-0026 | 5.5-5 | 5.3 | 5.6 | 3.5 | 9.5 | 6.8 | 19.8 | ||||
| LY0020-0027 | 5.5-6 | 6.4 | 5.6 | 3.5 | 12.0 | 6.8 | 25.8 | ||||
| LY0020-0028 | 5.5-6S | 6.4 | 5.6 | 3.5 | 12.0 | 6.8 | 22.5 | ||||
| LY0020-0029 | 5.5-8 | 8.4 | 5.6 | 3.5 | 15.0 | 6.8 | 28.0 | ||||
| LY0020-0030 | 5.5-10 | 10.5 | 5.6 | 3.5 | 15.0 | 6.8 | 28.0 | ||||
| LY0020-0031 | 8-3 | 8 | 6.64-10.52 | 3.7 | 7.0 | 4.5 | 10.0 | 8.0 | 21.0 | 1.15 | |
| LY0020-0032 | 8-4 | 4.3 | 7.0 | 4.5 | 10.0 | 8.0 | 21.0 | ||||
| LY0020-0033 | 8-5 | 5.3 | 7.0 | 4.5 | 10.0 | 8.0 | 21.0 | ||||
| LY0020-0034 | 8-6 | 6.4 | 7.0 | 4.5 | 11.0 | 8.0 | 22.5 | ||||
| LY0020-0035 | 8-8 | 8.4 | 7.0 | 4.5 | 14.0 | 8.0 | 27.0 | ||||
| LY0020-0036 | 8-10 | 10.5 | 7.0 | 4.5 | 18.0 | 8.0 | 30.0 | ||||
| LY0020-0037 | 8-12 | 13.0 | 7.0 | 4.5 | 18.0 | 8.0 | 30.0 | ||||
| LY0020-0038 | 14/5 | 6 | 10.52-16.78 | 5.3 | 8.5 | 5.9 | 11.0 | 11.0 | 25.5 | 1.2 | |
| LY0020-0039 | 14/6 | 6.4 | 8.5 | 5.9 | 11.0 | 11.0 | 25.5 | ||||
| LY0020-0040 | 14/8 | 8.4 | 8.5 | 5.9 | 14.0 | 11.0 | 31.0 | ||||
| LY0020-0041 | 14/10 | 10.5 | 8.5 | 5.9 | 18.0 | 11.0 | 33.0 | ||||
| LY0020-0042 | 14/12 | 13.0 | 8.5 | 5.9 | 18.0 | 11.0 | 33.0 | ||||
| LY0020-0043 | 22/6 | 4 | 16.78-26.66 | 6.4 | 11.0 | 7.8 | 12.0 | 11.0 | 31.0 | 1.5 | |
| LY0020-0044 | 22/8 | 8.4 | 11.0 | 7.8 | 16.0 | 11.0 | 34.0 | ||||
| LY0020-0045 | 22/10 | 10.5 | 11.0 | 7.8 | 18.0 | 11.0 | 35.0 | ||||
| LY0020-0046 | 22/12 | 13.0 | 11.0 | 7.8 | 18.0 | 11.0 | 35.0 | ||||
| LY0020-0047 | 38-6 | 2 | 26.66-42.42 | 6.4 | 13.0 | 9.6 | 15.3 | 14.0 | 37.7 | 1.6 | |
| LY0020-0048 | 38-8 | 8.4 | 13.0 | 9.6 | 15.3 | 14.0 | 37.7 | ||||
| LY0020-0049 | 38-10 | 10.5 | 13.0 | 9.6 | 15.3 | 14.0 | 37.7 | ||||
| LY0020-0050 | 38-12 | 13.0 | 13.0 | 9.6 | 22.0 | 14.0 | 43.0 | ||||
| LY0020-0051 | 60-8 | 0 | 42.42-60.57 | 8.4 | 15.3 | 11.9 | 22.0 | 17.0 | 44.0 | 1.7 | |
| LY0020-0052 | 60-10 | 10.5 | 15.3 | 11.9 | 22.0 | 17.0 | 44.0 | ||||
| LY0020-0053 | 60-12 | 13.0 | 15.3 | 11.9 | 22.0 | 17.0 | 44.0 | ||||
| LY0020-0054 | 46112/1.25-3 | 22-18 | 0.25-1.50 | 3.7 | 3.2 | 1.6 | 6.6 | 6.5 | 17.9 | 0.76 | |
| LY0020-0055 | 46113/1.25-4 | 4.4 | 3.2 | 1.6 | 8.0 | 6.5 | 18.7 | ||||
| LY0020-0056 | 46114/1.25-5 | 5.0 | 3.2 | 1.6 | 8.0 | 6.5 | 19.0 | ||||
| LY0020-0057 | 46115/1.25-6 | 6.8 | 3.2 | 1.6 | 11.8 | 6.5 | 23.6 | ||||
| LY0020-0058 | 46312/2-3 | 16-14 | 1.50-2.50 | 3.7 | 4.0 | 2.3 | 8.0 | 6.5 | 20.2 | 0.8 | |
| LY0020-0059 | 46313/2-4 | 4.4 | 4.0 | 2.3 | 8.0 | 6.5 | 20.2 | ||||
| LY0020-0060 | 46314/2-5 | 5.0 | 4.0 | 2.3 | 8.0 | 6.5 | 20.2 | ||||
| LY0020-0061 | 46315/2-6 | 6.4 | 4.0 | 2.3 | 11.8 | 6.5 | 23.5 | ||||
| LY0020-0062 | 46316/2-8 | 8.4 | 4.0 | 2.3 | 11.8 | 6.5 | 23.5 | ||||
| LY0020-0063 | 46317/2-10 | 10.0 | 4.0 | 2.3 | 13.5 | 6.5 | 24.3 | ||||
| LY0020-0064 | 46413/5.5-4 | 12-10 | 4-6 | 4.4 | 5.6 | 3.5 | 9.4 | 6.75 | 22.85 | 1.0 | |
| LY0020-0065 | 46414/5.5-5 | 5.0 | 5.6 | 3.5 | 9.4 | 6.75 | 22.85 | ||||
| LY0020-0066 | 46415/5.5-6 | 6.8 | 5.6 | 3.5 | 13.3 | 6.75 | 25.3 | ||||
| LY0020-0067 | 46416/5.5-8 | 8.4 | 5.6 | 3.5 | 13.3 | 6.75 | 25.7 | ||||
| LY0020-0068 | 46417/5.5-10 | 10.0 | 5.6 | 3.5 | 15.0 | 6.75 | 26.8 | ||||
| LY0020-0069 | 46419/5.5-12 | 13.2 | 5.6 | 3.5 | 18.2 | 6.75 | 28.5 | ||||
| LY0020-0070 | LY8-5 | 8 | 6.64-10.52 | 5.3 | 7.0 | 4.5 | 12.0 | 8.5 | 23.8 | 1.2 | |
| LY0020-0071 | LY8-6 | 6.4 | 7.0 | 4.5 | 12.0 | 8.5 | 23.8 | ||||
| LY0020-0072 | LY8-8 | 8.4 | 7.0 | 4.5 | 15.0 | 8.5 | 29.8 | ||||
| LY0020-0073 | LY8-10 | 10.5 | 7.0 | 4.5 | 15.0 | 8.5 | 29.8 | ||||
| LY0020-0074 | LY14-5 | 6 | 10.52-16.78 | 5.3 | 9.3 | 5.8 | 12.0 | 10.0 | 27.5 | 1.7 | |
| LY0020-0075 | LY14-6 | 6.4 | 9.3 | 5.8 | 12.0 | 10.0 | 27.5 | ||||
| LY0020-0076 | LY14-8 | 8.4 | 9.3 | 5.8 | 16.0 | 10.0 | 32.5 | ||||
| LY0020-0077 | LY14-10 | 10.5 | 9.3 | 5.8 | 16.0 | 10.0 | 32.5 | ||||
| LY0020-0078 | LY22-6 | 4 | 16.78-26.66 | 6.4 | 11.3 | 7.7 | 16.5 | 12.0 | 33.7 | 1.8 | |
| LY0020-0079 | LY22-8 | 8.4 | 11.3 | 7.7 | 16.5 | 12.0 | 33.7 | ||||
| LY0020-0080 | LY22-10 | 10.5 | 11.3 | 7.7 | 16.5 | 12.0 | 36.7 | ||||
| LY0020-0081 | LY38-6 | 2 | 26.66-42.42 | 6.4 | 13.4 | 9.4 | 22.0 | 14.0 | 41.0 | 2.0 | |
| LY0020-0082 | LY38-8 | 8.4 | 13.4 | 9.4 | 22.0 | 14.0 | 41.0 | ||||
| LY0020-0083 | LY38-10 | 10.5 | 13.4 | 9.4 | 22.0 | 14.0 | 43.0 | ||||
| LY0020-0084 | LY38-12 | 13.0 | 13.4 | 9.4 | 22.0 | 14.0 | 43.0 | ||||
| LY0020-0085 | LY70-8 | 00 | 60.51-76.28 | 8.4 | 17.5 | 13.5 | 27.0 | 19.0 | 52.5 | 2.0 | |
| LY0020-0086 | LY70-10 | 00 | 60.51-76.28 | 10.5 | 17.5 | 13.5 | 27.0 | 19.0 | 52.5 | ||
| LY0020-0087 | LY70-12 | 00 | 60.51-76.28 | 13.0 | 17.5 | 13.5 | 27.0 | 19.0 | 52.5 | ||
| LY0020-0088 | 8-6 | 8 | 6.64-10.52 | 6.4 | 6.8 | 4.6 | 12.0 | 8.5 | 23.8 | 1.0 | |
| LY0020-0089 | 14-8 | 6 | 10.52-16.78 | 8.4 | 8.8 | 6.4 | 16.0 | 10.0 | 32.5 | 1.2 | |
| LY0020-0090 | 22-8 | 4 | 16.78-26.66 | 8.4 | 11.0 | 7.8 | 16.5 | 12.0 | 33.7 | 1.55 | |
| LY0020-0091 | 38-10 | 2 | 26.66-42.42 | 10.5 | 13.0 | 9.6 | 22.0 | 14.0 | 43.0 | 1.6 | |
| LY0020-0092 | 60-12 | 0 | 42.42-60.57 | 13.0 | 15.4 | 11.6 | 22.0 | 18.0 | 49.7 | 1.8 | |
| LY0020-0093 | 100-12 | 000 | 96.30-117.2 | 13.0 | 21.7 | 16.4 | 28.5 | 21.0 | 55.6 | 2.5 | |
利用现有轨道式接线端子 RTB 连接技术，并加装了电子元器件组成的电路，实现了光电过程的传输耦合。 自动控制的核心是控制单元必须与各传感器和执行器可靠地隔离开，以免干扰，端子能够很好地完成这一功能，并保证现场信号与电子控制装置所要求的低电压相匹配，还可以作过程控制的外围设备与控制，信号和调节器装置之间的接口元件，且适用于不同的电压和功率范围。 光隔端子具有控制端信号损耗下、切换频率高、无机械触点抖动、无磨损切换、绝缘电压高、不怕振动、不受位置影响且寿命长等优点，因此在自动控制领域得到广泛应用。

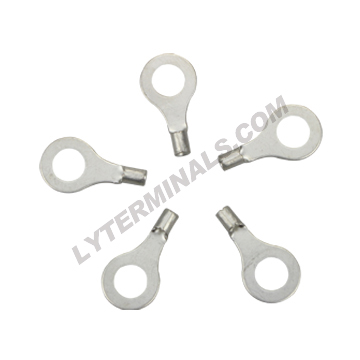

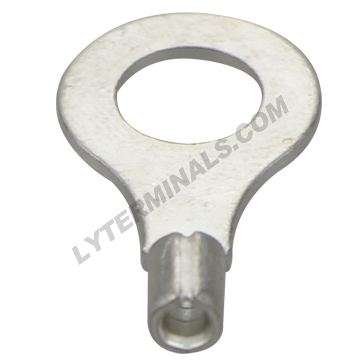

线耳--圆型裸端子 UL:E357535 LY0020-0001/0093
