电缆线端头--TT铜鼻子

LY0001-6001/6072

⊙材质:紫铜
⊙含量:铜99.9%以上
⊙表面:镀锡
⊙用途:端子就是用于实现电气连接的一种配件产品,工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的,它其实就是一段封在绝缘塑料里面的金属片,两端都有孔可以插入导线,有螺丝用于紧固或者松开。比如两根导线,有时需要连接,有时又需要断开,这时就可以用端子把它们连接起来,并且可以随时断开,而不必把它们焊接起来或者缠绕在一起,很方便快捷。




PART NO
2015-2018

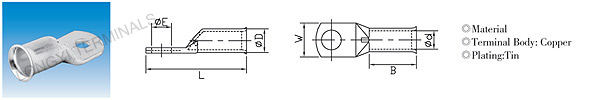

ITEM NO DIMENSIONS
φE ΦD Φd W B L
LY0001-6001 TT10-6 6.4 6.9 4.7 11.9 12.0 28.0
LY0001-6002 TT10-8 8.3 6.9 4.7 13.5 12.0 31.0
LY0001-6003 TT16-6 6.4 7.8 5.6 11.9 17.0 33.0
LY0001-6004 TT16-8 8.3 7.8 5.6 13.5 17.0 37.0
LY0001-6005 TT16-10 10.5 7.8 5.6 16.0 17.0 38.0
LY0001-6006 TT25-8 8.3 9.5 7.1 14.0 18.0 39.0
LY0001-6007 TT25-10 10.5 9.5 7.1 16.0 18.0 42.0
LY0001-6008 TT35-8 8.3 11.0 8.2 16.5 19.0 42.0
LY0001-6009 TT35-10 10.5 11.0 8.2 16.5 19.0 46.0
LY0001-6010 TT50-10 10.5 12.5 9.5 17.9 22.0 51.0
LY0001-6011 TT50-12 13.0 12.5 9.5 17.9 22.0 51.0
LY0001-6012 TT70-10 10.5 15.0 11.5 22.0 22.0 54.0
LY0001-6013 TT70-12 13.0 15.0 11.5 22.0 22.0 54.0
LY0001-6014 TT95-14 14.5 17.0 13.5 24.7 27.0 72.0
LY0001-6015 TT95-16 16.5 17.0 13.5 24.7 27.0 72.0
LY0001-6016 TT120-14 14.5 20.0 15.6 28.9 29.0 74.0
LY0001-6017 TT120-16 16.5 20.0 15.6 28.9 29.0 74.0
LY0001-6018 TT150-14 14.5 21.0 16.5 30.4 28.0 84.0
LY0001-6019 TT150-16 16.5 21.0 16.5 30.4 28.0 84.0
LY0001-6020 TT185-16 16.5 23.6 18.4 34.0 42.0 92.0
LY0001-6021 TT240-16 16.5 26.4 21.2 41.0 45.0 98.0
LY0001-6022 S-TT-6/4 4.3 5.5 3.8 10.3 11.0 25.0
LY0001-6023 S-TT-6/5 5.3 5.5 3.8 10.3 11.0 25.0
LY0001-6024 S-TT-6/6 6.4 5.5 3.8 10.3 11.0 26.0
LY0001-6025 S-TT-6/8 8.3 5.5 3.8 14.0 11.0 29.0
LY0001-6026 S-TT-10/4 4.3 6.8 4.7 11.9 11.5 26.5
LY0001-6027 S-TT-10/5 5.3 6.8 4.7 11.9 11.5 27.0
LY0001-6028 S-TT-10/6 6.4 6.8 4.7 11.9 11.5 28.5
LY0001-6029 S-TT-10/8 8.3 6.8 4.7 15.0 11.5 31.5
LY0001-6030 S-TT-10/10 10.5 6.8 4.7 18.0 11.5 35.5
LY0001-6031 S-TT-16/5 5.3 7.8 5.6 11.9 16.5 32.0
LY0001-6032 S-TT-16/6 6.4 7.8 5.6 11.9 16.5 34.0
LY0001-6033 S-TT-16/8 8.3 7.8 5.6 15.0 16.5 36.5
LY0001-6034 S-TT-16/10 10.5 7.8 5.6 18.0 16.5 40.0
LY0001-6035 S-TT-25/6 6.4 9.4 7.1 13.5 18.0 36.0
LY0001-6036 S-TT-25/8 8.3 9.4 7.1 15.0 18.0 39.0
LY0001-6037 S-TT-25/10 10.5 9.4 7.1 18.0 18.0 44.0
LY0001-6038 S-TT-25/12 13.0 9.4 7.1 21.0 18.0 46.0
LY0001-6039 S-TT-35/6 6.4 11.3 8.7 16.0 19.0 37.0
LY0001-6040 S-TT-35/8 8.3 11.3 8.7 16.0 16.0 38.0
LY0001-6041 S-TT-35/10 10.5 11.3 8.7 19.0 19.0 45.0
LY0001-6042 S-TT-35/12 13.0 11.3 8.7 21.0 19.0 47.0
LY0001-6043 S-TT-50/6 6.4 12.6 9.8 17.9 22.0 44.0
LY0001-6044 S-TT-50/8 8.3 12.6 9.8 17.9 22.0 46.0
LY0001-6045 S-TT-50/10 10.5 12.6 9.8 20.0 22.0 50.0
LY0001-6046 S-TT-50/12 13.0 12.6 9.8 21.0 22.0 54.0
LY0001-6047 S-TT-70/8 8.3 14.7 11.5 21.5 23.0 49.0
LY0001-6048 S-TT-70/10 10.5 14.7 11.5 21.5 25.0 55.0
LY0001-6049 S-TT-70/12 13.0 14.7 11.5 21.5 23.0 55.0
LY0001-6050 S-TT-95/8 8.3 16.9 13.5 24.7 30.0 58.0
LY0001-6051 S-TT-95/10 10.5 16.9 13.5 24.7 30.0 61.0
LY0001-6052 S-TT-95/12 13.0 16.9 13.5 24.7 30.0 63.0
LY0001-6053 S-TT-95/14 14.5 16.9 13.5 24.7 30.0 67.0
LY0001-6054 S-TT-95/16 16.5 16.9 13.5 27.0 30.0 70.0
LY0001-6055 S-TT-120/10 10.5 19.9 15.6 28.9 30.5 62.0
LY0001-6056 S-TT-120/12 13.0 19.9 15.6 28.9 30.5 67.0
LY0001-6057 S-TT-120/14 14.5 19.9 15.6 28.9 30.5 74.0
LY0001-6058 S-TT-120/16 16.5 19.9 15.6 28.9 30.5 74.0
LY0001-6059 S-TT-150/10 10.5 20.9 16.5 30.4 38.0 75.0
LY0001-6060 S-TT-150/12 13.0 20.9 16.5 30.4 38.0 81.0
LY0001-6061 S-TT-150/14 14.5 20.9 16.5 30.4 38.0 85.0
LY0001-6062 S-TT-150/16 16.5 20.9 16.5 30.4 38.0 85.0
LY0001-6063 S-TT-185/12 13.0 23.7 18.8 34.0 41.0 87.0
LY0001-6064 S-TT-185/14 14.5 23.7 18.8 34.0 41.0 91.0
LY0001-6065 S-TT-185/16 16.5 23.7 18.8 34.0 41.0 92.0
LY0001-6066 S-TT-240/12 13.0 26.2 21.2 38.4 45.0 93.0
LY0001-6067 S-TT-240/14 14.5 26.2 21.2 38.4 45.0 97.0
LY0001-6068 S-TT-240/16 16.5 26.2 21.2 38.4 45.0 98.0
LY0001-6069 S-TT-240/20 21.0 26.2 21.2 38.4 45.0 98.0
LY0001-6070 S-TT-300/14 14.5 28.6 23.4 41.7 49.0 100.0
LY0001-6071 S-TT-300/16 16.5 28.6 23.4 41.7 49.0 106.0
LY0001-6072 S-TT-400/16 16.5 32.8 26.8 47.8 54.0 115.0
